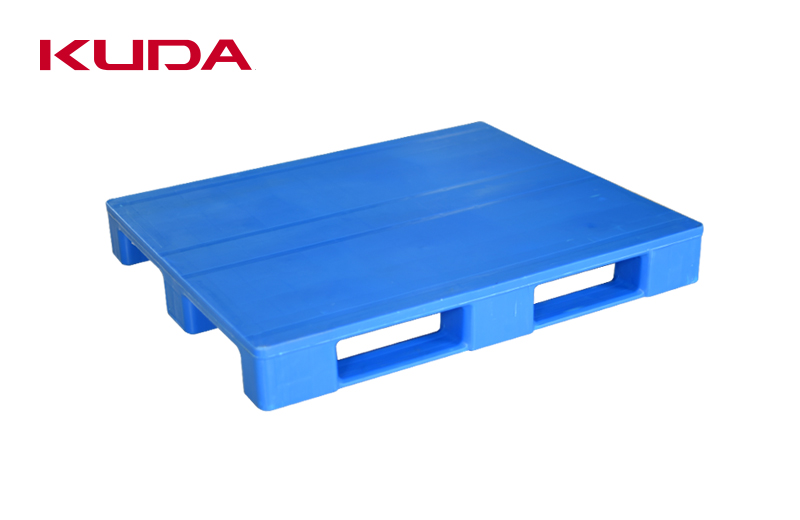

The flat Sichuan shaped plastic tray has achieved a paradigm upgrade in logistics efficiency through the collaborative design of the flat surface and the Sichuan shaped chassis. The flat surface is made of high-density polyethylene (HDPE) integrated injection molding, combined with anti slip pattern design, which reduces the cargo displacement rate by 60%; The Sichuan shaped structure composed of three longitudinal reinforcing ribs at the bottom not only enables the forklift to operate in three directions, but also increases the dynamic load capacity to 2 tons through a 9-point support system. This structural combination surpasses traditional tray types such as Tianzi and Jiujiao in terms of stability and versatility.
1、 Core structural advantages
Tablet design features
Smooth surface without gaps, suitable for handling bulk items, bagged goods, and precision instruments
The integrated injection molding process ensures even load-bearing capacity (static load of 4-6 tons, dynamic load of 1.5-2 tons)
Anti slip pattern design enhances cargo stability and reduces transportation displacement risks
The Value of Sichuan Character Structure
The bottom three longitudinal beams form a "chuan" shaped channel, which is compatible with the three-way fork operation of forklifts
The three-dimensional reinforced structure reduces weight by 15% compared to the Tianzi tray while maintaining the same strength
Avoid liquid accumulation and comply with food grade HDPE standards
2、 Industry application scenarios
Cold chain logistics: temperature range of -30 ℃~60 ℃, widely used in fresh food storage
Automated warehouse: standard size (1200 × 1000mm/1100 × 1100mm) compatible with three-dimensional shelves
Cross border transportation: Complies with ISPM15 fumigation exemption standards and can be directly exported
3、 Full lifecycle value
Extend the service life of wooden pallets by 3-5 times and support over 100000 cycles of use
100% recyclable after damage, in line with the trend of green logistics
Modular design supports the installation of RFID chips to achieve intelligent warehouse management.
